Wall-side receiver.

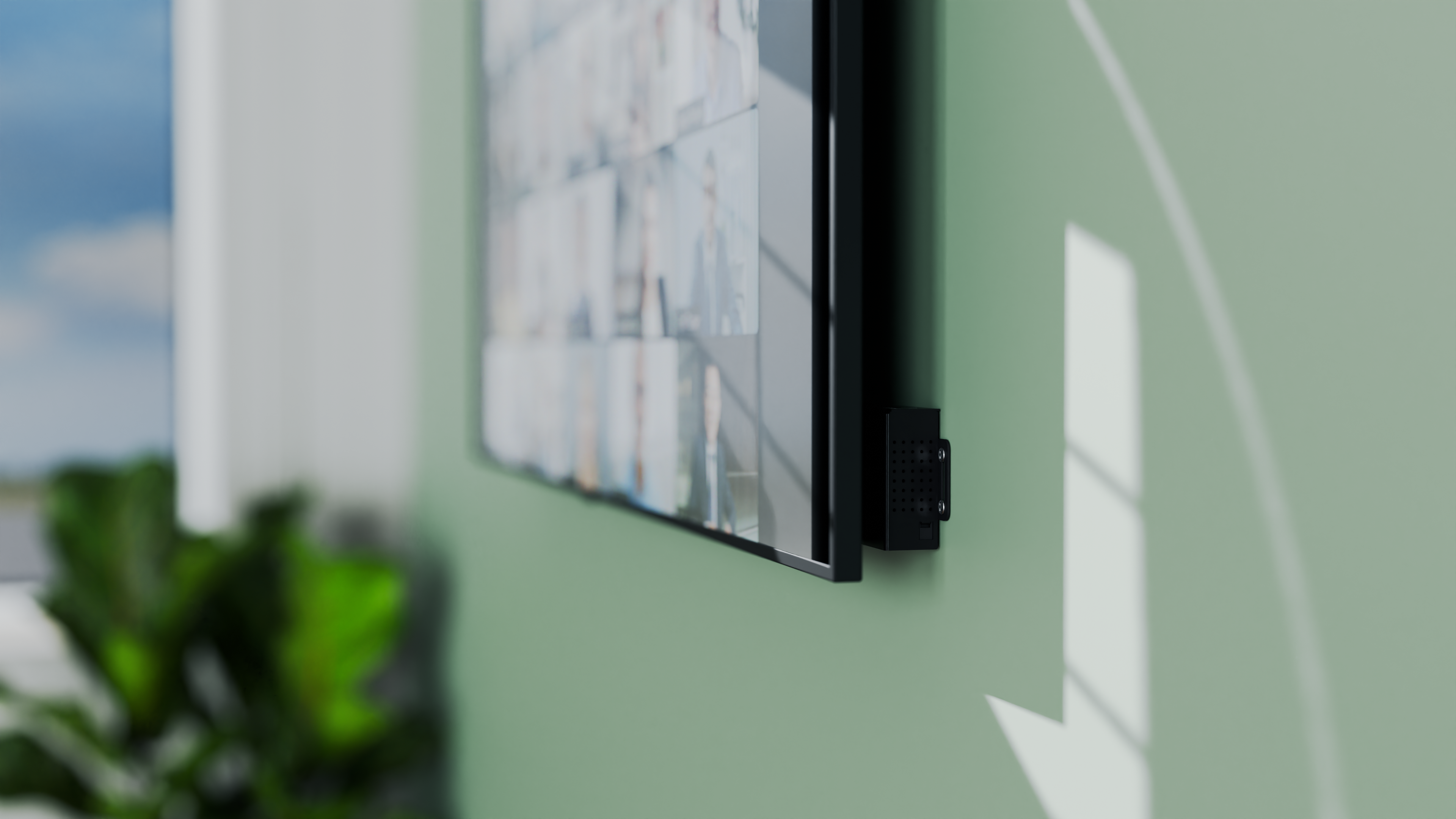

Ochno Power Conference 4 Node is an extension product in the Ochno Power Conference 4 Room Kit. With USB-C input and USB-C output, it can be used for extension both downstream towards the display and devices, and upstream towards the laptop.
10m or 20m extension cable.
The Ochno USB-C Extension Cable is a unique product optimized for connecting the wall side of a meeting room with the table. The product is available in 10m and 20m options.
Product name
Ochno Power Conference 4 Node
Model
O-PC-4-NODE
Contents
Main unit. power adapter, mounting brackets, manual.
Warranty
3 years
Dimensions
150 x 65 x 33 mm,
Weight
380g
Regulatory approvals
CE, FCC, RoHS, REACH
Safety class
IP20, 90% RH
Ambient temperature
5° – 40°C.
Protection
Over-current, over-voltage, over-temperature
USB-C Input Port
1 x USB Type-C USB 3.2 Gen 2. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.4 video input.
USB-C Extension port
DP alt-mode 1.4 video output, 2 or 4 DP lanes. Max resolution 2 x 4k 60hz at 4 lanes. Up to 32 Gbps video output. USB 3.2 Gen 2, speed up to 10 Gbps.
HDMI Out
HDMI 2.1 video output. Max resolution 8k 60Hz. Up to 32 Gbps video output.
USB-C Dual Role Port
1 x USB 3.2 Gen 2 Port. Speed up to 10 Gbps. Can connect both usb devices and usb hosts.
USB-A Ports
2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 0.9A power supply.
RJ45
100/1000 Mbit/s Ethernet connectivity to Ethernet-sharing via USB-C ports.
DC IN
Included: 60W 12V / 5A power supply input.
Optional: 200W 20V / 10A power supply input.
Management
O-PC-4-NODE is fully managable via connected O-PC-4, either locally using Ochno Management Console or Ochno Operated.
USB-C Internet
The network connected to the USB-C Internet port is shared via USB to the activly selected USB-C port. This allow the user to get network access without the need for using WIFI.
USB Pass-through
The 2 USB-A ports and 2 USB-C ports are normally used to connected USB device to. These devices will be made available to either the USB-C Input port or the Dual Role USB-C port in the case of Windows-based UC-systems.
Extension
The extension port can send both video and USB-communication to a downstream USB-C device which could be another O-PC-4-NODE, an O-PC-4, a device that supports USB-C upstream or a standard USB-C to HDMI-adapter.
Video out
O-PC-4 has an internal DP MST hub which allows for dual video output and a Windows laptop can select “Extend Desktop” to show different contant on each display. For installations with two HDMI displays, a USB-C to HDMI-adapter can be inserted into the Extension port to get a secondary HDMI out. Apple MacBooks will replicate the same image on both displays.
Charging and USB Power
O-PC-4-NODE is shipped with a 60W power supply which provides 5V/3A output on all USB-C ports and 5V/1A output on USB-A ports. Alternativly, a 200W power supply can be used and then USB-C Input and USB-C Extension ports can provide up to 100W power output.
