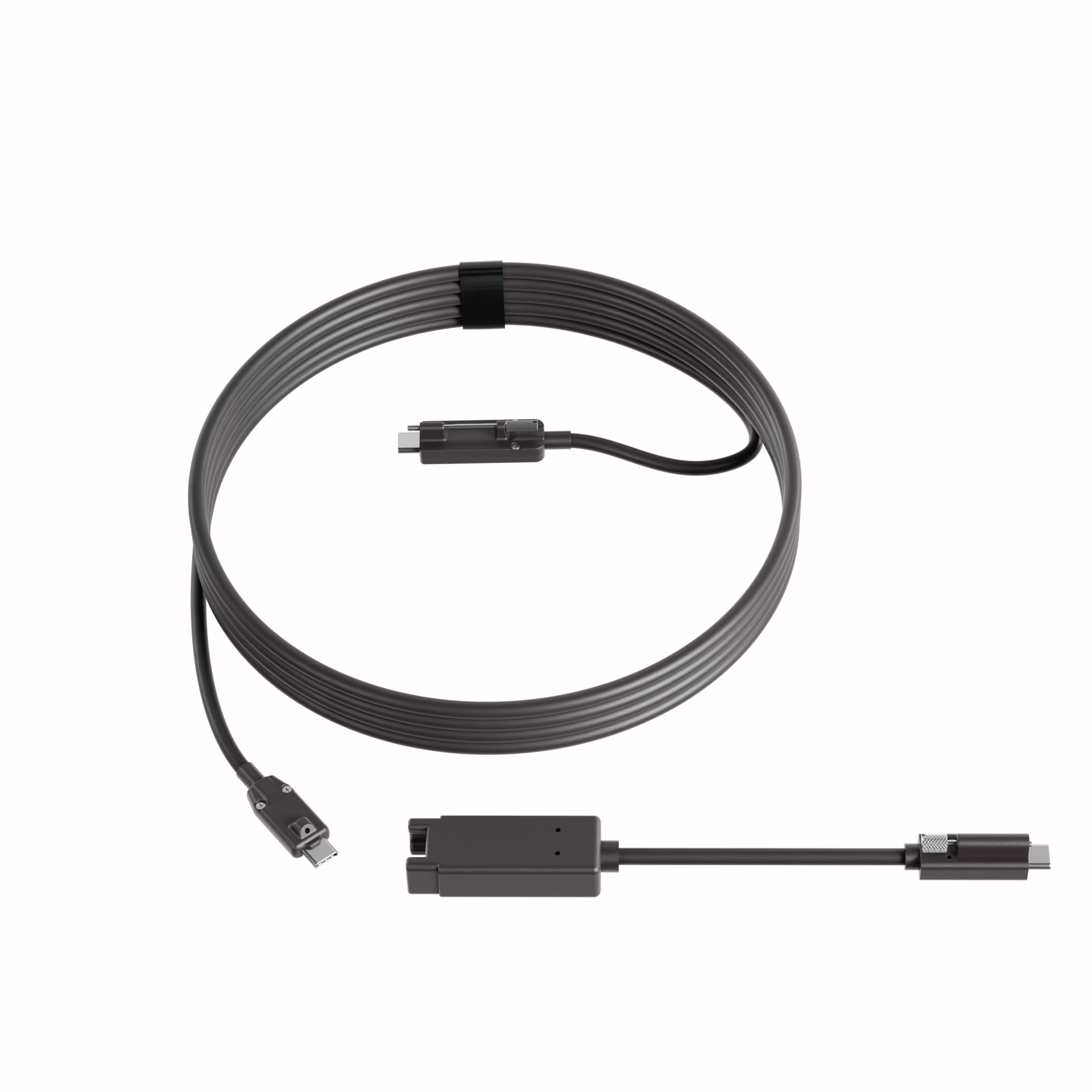

The Ochno USB-C Extension Cable is a unique product optimized for connecting the wall side of a meeting room with the table. Ochno has developed a set of key features to make it suitable for video conference rooms and ProAV needs:
The product is available in 10m and 20m options.
Product name
Ochno USB-C Extension Cable
Model
10 Meter: O-EC-10
20 Meter: O-EC-20
Contents
Active Optical Cable, Attachable electronics cable, User Guide
Warranty
3 years
Regulatory approvals
CE, FCC, RoHS, REACH
Safety class
IP20, 90% RH
Ambient temperature
5° – 40°C.
Power distribution
Rated for 15W. Not be used for charging laptop.
Alt-mode configuration
2 Lane DP + 2 Lane USB 3.2
USB
USB 2.0 HS (480 Mbit/s), USB 3.2 Gen 2 (10 Gbps)
Video
2 Lane DP 1.4 HBR3 (2 x 8.1 Gbps)
Direction
Uni-directional.
Conduit size
Minimum inner diamater 15mm with smallest tube bend radius of 50mm. Larger inner diameter can handle smaller tube bend radius
Max pull-force
156 Nm / 16 Kg
4x USB-C Switcher.
With Ochno Power Conference 4, it is easy to design and install USB-C laptop connectivity in rooms of any size and with any video conferencing system.
Wall-side receiver.
Ochno Power Conference 4 Node is an extension product in the Ochno Power Conference 4 Room Kit. With USB-C input and USB-C output, it can be used for extension both downstream towards the display and devices, and upstream towards the laptop.
10m or 20m extension cable.
The Ochno USB-C Extension Cable is a unique product optimized for connecting the wall side of a meeting room with the table. The product is available in 10m and 20m options.
Product name
Ochno USB-C Extension Cable
Model
10 Meter: O-EC-10
20 Meter: O-EC-20
Contents
Active Optical Cable, Attachable electronics cable, User Guide
Warranty
1 year
Regulatory approvals
CE, FCC, RoHS, REACH
Safety class
IP20, 90% RH
Ambient temperature
5° – 40°C.
Power distribution
Rated for 15W. Not be used for charging laptop.
Alt-mode configuration
2 Lane DP + 2 Lane USB 3.2
USB
USB 2.0 HS (480 Mbit/s), USB 3.2 Gen 2 (10 Gbps)
Video
2 Lane DP 1.4 HBR3 (2 x 8.1 Gbps)
Direction
Uni-directional.
Conduit size
Minimum inner diamater 15mm with smallest tube bend radius of 50mm. Larger inner diameter can handle smaller tube bend radius
Max pull-force
156 Nm / 16 Kg
